The all-new multi-purpose LittleRed XD Digital infrared dryer cures direct-to-garment (DTG) printed textiles as well as plastisol, water-based and discharge-printed garments at higher rates than possible with conventional dryer designs.
Equipped  with a high-powered pre-heating zone that rockets ink temperatures past 300°F (149ºC) within the first several inches of conveyor travel, maximizing the distance and dwell time for optimum curing of any ink.

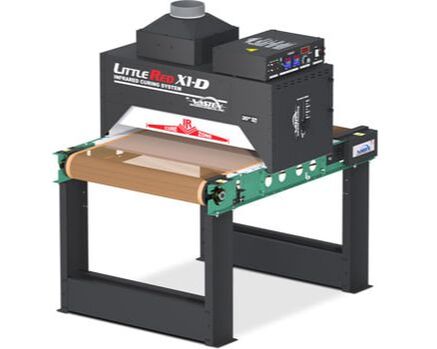

LR-X1D-30 Vastex LittleRed Digital Dryers
The LittleRed X1D-30 model with 30"inches belt width x 48"inches (122 cm) long conveyor length is offered with (1) Heater chamber  4,050watts to cure up to 160 prints/hr *plastisol,  80 prints/hr  *Waterbase/Discharge & 34 prints/hr DTG Prints.
Specs: 30" wide x 4'ft Long Belt (122cm)
Voltage: 240v, 16amps, 1ph with 4,050watts Heat Chamber
Vastex LittleRed LR-30X1-D DTG Dryers (240v)
Select Voltage:
Specification Sheet:
Download Owner's Manual:

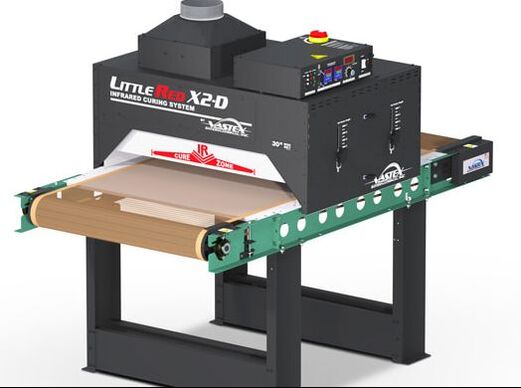

LR-X2D-30 Vastex LittleRed Digital Dryers
The LittleRed X2-D model is equipped with a 30"inches (76.2 cm) wide conveyor belt and (2) 24 in. (61 cm) wide infrared heaters (6,300w w/240volts) and can cure 240 plastisol prints/hr, 122 Water-based/Discharge prints/hr and 50 prints/hr DTG inks. Included with an unmatched 15 year Heater Warranty
Specs: 30" wide x 66"inches long  (168cm)
Voltage: 240v, 27amps, 1phase with 6,300watts Heat Chamber
LR30-X2-D DTG Dryers
Select Voltage:
Check specifications:
Download  Manual:
LR-X3D-30 Vastex LittleRed Digital Dryers
The LittleRed X3-D model is equipped with a 30"inches (76.2 cm) wide conveyor belt and (3) 24 in. (61 cm) wide infrared heaters (8,300w w/240volts) and can cure 360+ plastisol prints/hr, 180+ Water-based/Discharge prints/hr and 122prints/hr DTG inks. Included with an unmatched 15 year Heater Warranty
LR30-X3-D DTG Dryers
Select Voltage:
Download Owner's Manual:
Check Specs sheet:

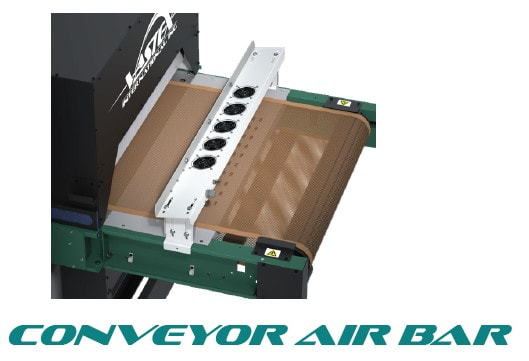

Vastex Air Cooling Bar
This option mounts to the the rear conveyor of Vastex dryers and many other brand dryers to cool the garments as they exit the chamber to prevent hot ink from sticking.Tight spacing between fans for even airflow, Adjustable height for thicker substrates, Angled to avoid air blowing into chamber.
Vastex Air Cooling Bar 30inch wide
Select Voltage:
Dryer Extensions:

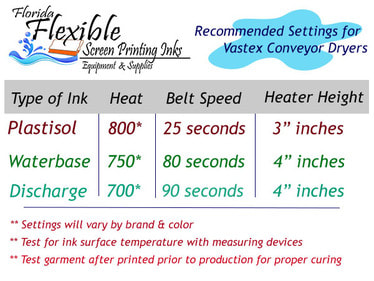

Temperature Specs:
Dryer Temperature Check:
